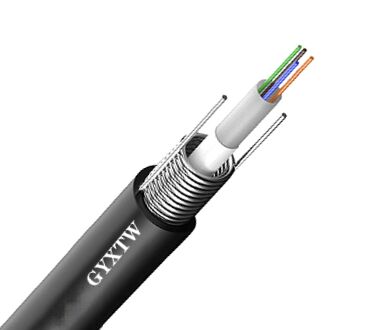

GYXTW 4 Core Single-Mode Outdoor Fiber Optic Cable With Steel Tape Armored
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
Was ist das?:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Anwendung | Telekommunikation, FTTH FTTB FTTX-Netzwerk, Antenne/Kanal | Fasertyp | G652d |
|---|---|---|---|
| Faserzahl | 4 Kerne | Jackenmaterial | PE |
| Verpackung | Trommel 2-4km/wooden | Stärke Mitglied | Stahldraht/ Stahlband |
| OEM | Accpet | ||
| Hervorheben | 4 core single-mode fiber optic cable,steel tape armored outdoor cable,outdoor fiber optic cable with warranty |
||
Produkt-Beschreibung
Product Overview
This model adopts a central loose tube that houses four single-mode fibers (G652D or G657 series). The tube is filled with water-blocking gel to ensure long-term moisture resistance. Externally, a layer of corrugated steel tape armor protects the cable from mechanical impact, compression, and accidental damage.
Two parallel steel wires provide additional tensile capacity, making the cable suitable for aerial spans and outdoor pulling. The outer jacket is made of high-density polyethylene for UV resistance and durability in harsh weather.
Advantages at a glance:
-
Stable optical transmission with single-mode G652D/G657
-
High tensile strength for aerial deployment
-
Steel tape armor enhances crush and rodent resistance
-
Compact and flexible for easy installation
-
Long-term outdoor performance with PE UV-resistant jacket
Technical Specifications
| Item | Details |
|---|---|
| Cable Type | GYXTW Outdoor Armored Fiber Cable |
| Fiber Count | 4 Core |
| Fiber Type | Single-mode G652D / G657A1 / G657A2 |
| Construction | Central loose tube |
| Tube Material | PBT |
| Water Blocking | Thixotropic gel |
| Strength Members | Two parallel galvanized steel wires |
| Armor Layer | Corrugated steel tape |
| Outer Jacket | HDPE (UV-resistant) |
| Nominal Diameter | Customizable based on project needs |
| Installation Load | Suitable for aerial and duct installation |
| Operating Temperature | –40°C to +70°C |
| Compliance | ITU-T standards / IEC standards / RoHS |
Typical Applications
-
Outdoor FTTx distribution networks
-
Aerial fiber routes on poles
-
Telecommunication backbone extensions
-
Urban and rural broadband deployment
-
Campus and industrial park optical cabling
