All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking

  • All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
  • All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
  • All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
Herkunftsort Shandong, China
Markenname OEM
Zertifizierung ISO TLC
Modellnummer ADSS-48B1. Das ist nicht wahr.3
Min Bestellmenge 2000M
Preis EXW $0.3/M
Verpackung Informationen 1. Eisenholztrommel oder nicht-Fumigationsholztrommel,normale Holztrommel. 2. Trommelgröße kann entw
Lieferzeit 5 bis 8 Tage
Zahlungsbedingungen T/T, L/C
Versorgungsmaterial-Fähigkeit 5000 KMS/Tag

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

Was ist das?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Fasertyp G652D/G657A1 A2 Faserzahl 2-288 Kern
Stärkter Mitglied FRP Kleider und Kleidung PE
Jackenfarbe Schwarz Marke OEM
Hervorheben

ADSS Fiber Optic Cable

,

Networking ADSS Fiber Optic Cable

,

Self Supporting ADSS Fiber Optic Cable
Hinterlass eine Nachricht
Produkt-Beschreibung

Description

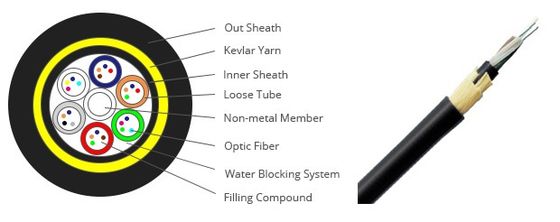

ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers



Features&Application





1.Utility Companies:



ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines

2.Telecommunications:

They are also used by telecommunications companies for providing high-speed internet and other communication service

3.Campus Backbones:

ADSS cables are suitable for establishing reliable communication links within campuses and between building



4.Long-Span Applications:

ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure

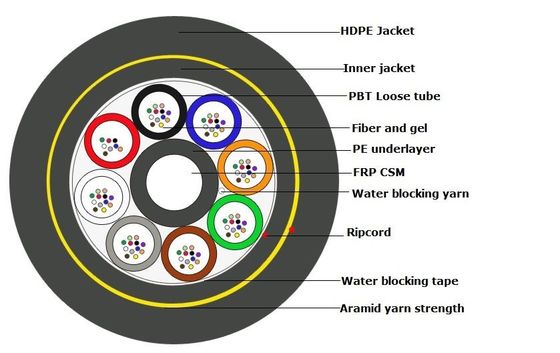

Specification







Fiber Count 12 24 36 48 96 144
Fiber Count Per Tube 6 6 6 12 12 12
Loose Tube Material PBT
Water Blocking Material Fiber Jelly
Counts 2 4 6 4 8 12
Central Strength Member Material FRP Rod (Coated with PE if needed)
Counts 2.2 2.2 2.2 2.5 2.5 2.5
Overall Diameter (nom.)(mm)(±0.2) 10.3 10.4 10.4 11 12.3 14.9
Outer Jacket Material HDPE, Black
Nominal Thickness (mm) 1.6 1.6 1.6 1.6 1.6 1.6
Cable Weight Kg/Km 73 76 76 86 109 162
Temperature Range Operation -30°C~+70°C
Storage -30°C~+70°C
Installation -10°C~+60°C
